L7 Disconnect Switches to 100A
A UL approved device for applications up to 100A. This modular and flexible design minimizes inventory.
Popular Resources / Quicklinks
Overview

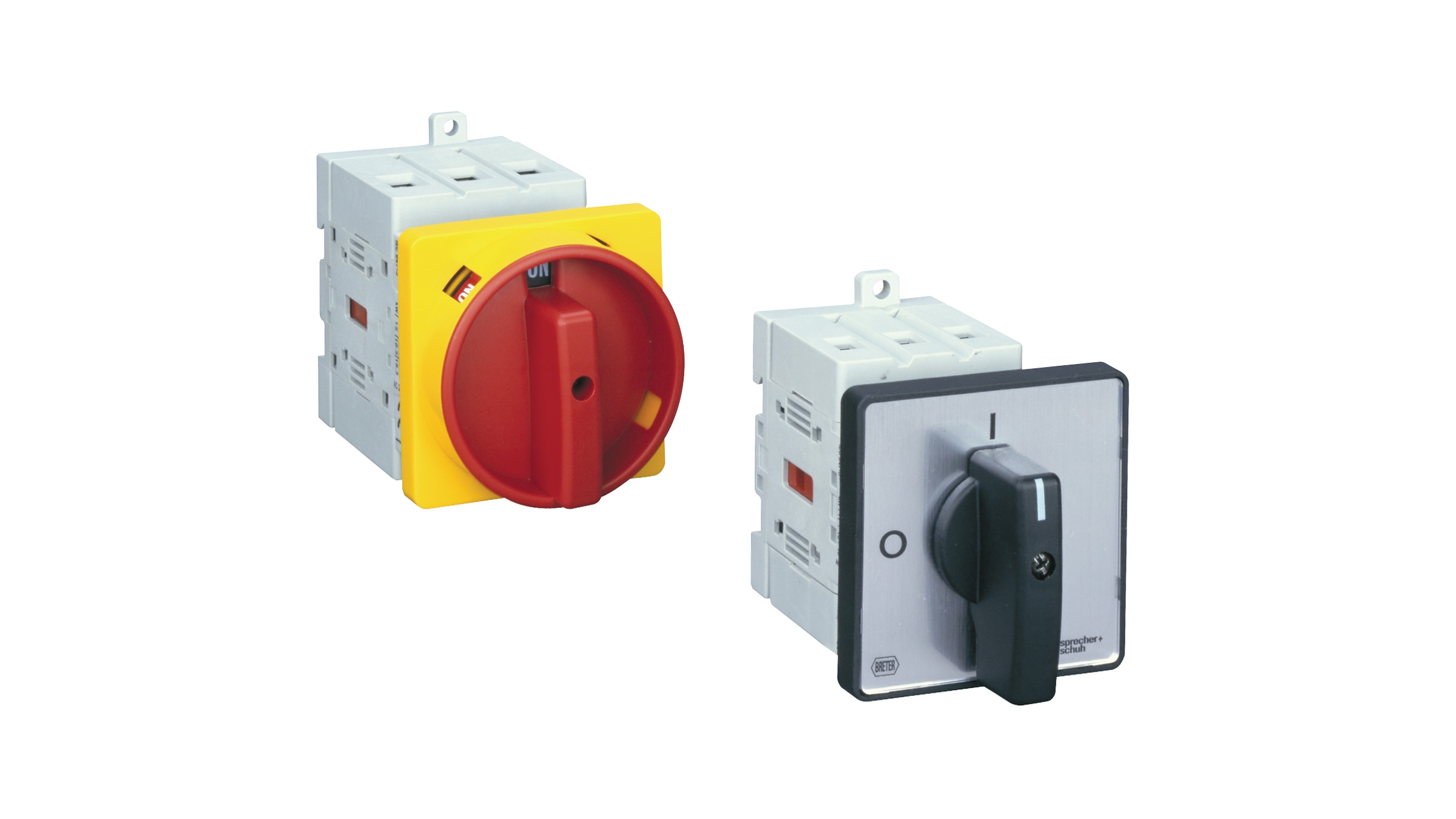

L7 Disconnect Switches are available in four frame sizes up to 100 amps. The smaller L7s come in six pole models, as well as three pole changeover switches. A full complement of switch handles and accessories including auxiliary contact blocks, ground and neutral terminals make the L7 line broad enough to tackle virtually any disconnect duty.
Disconnect Switches
Product Comparison
Specifications
- Side Mount accessories

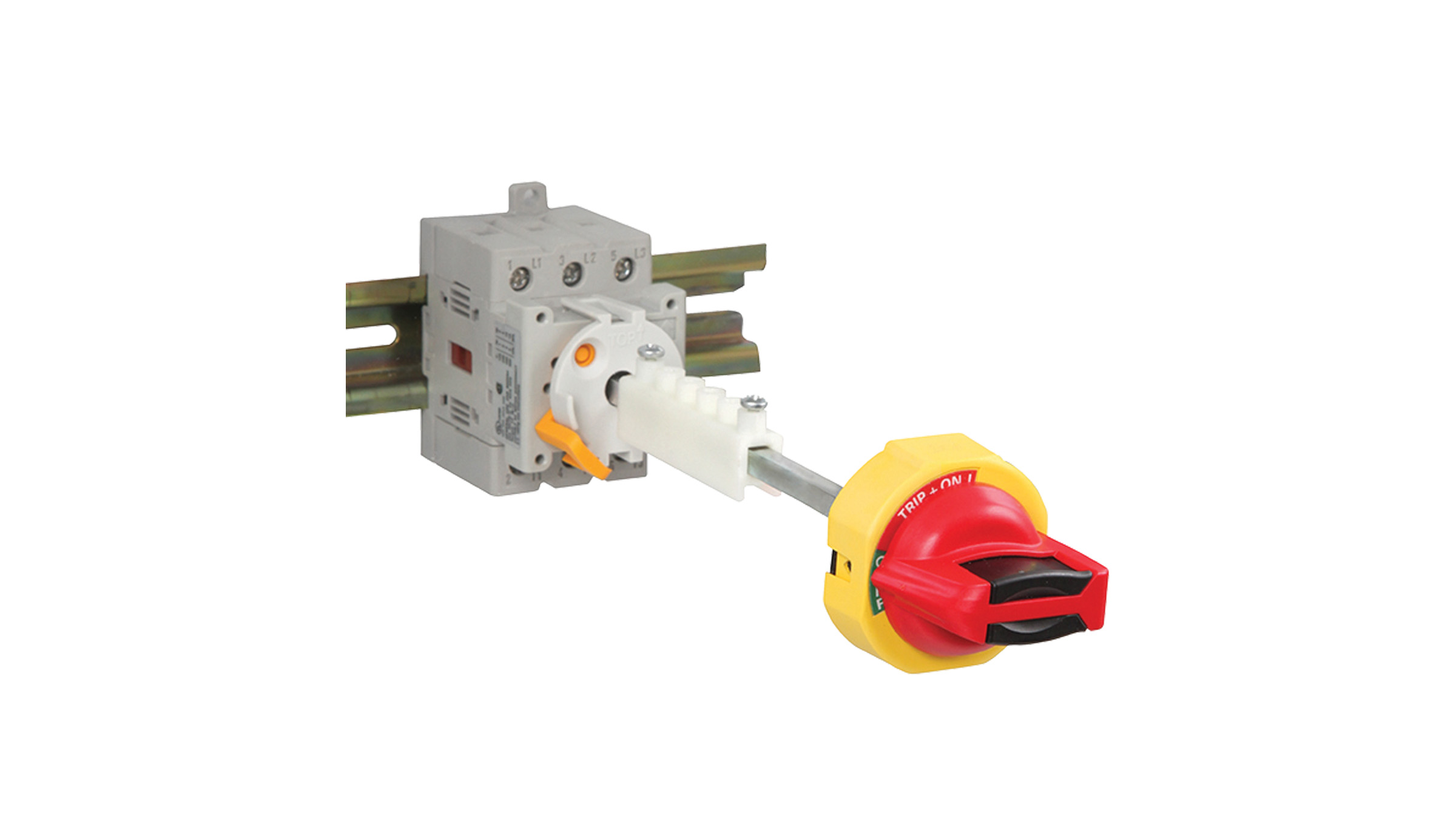

- Extension Shafts
- Handle Assemblies with common legend plates

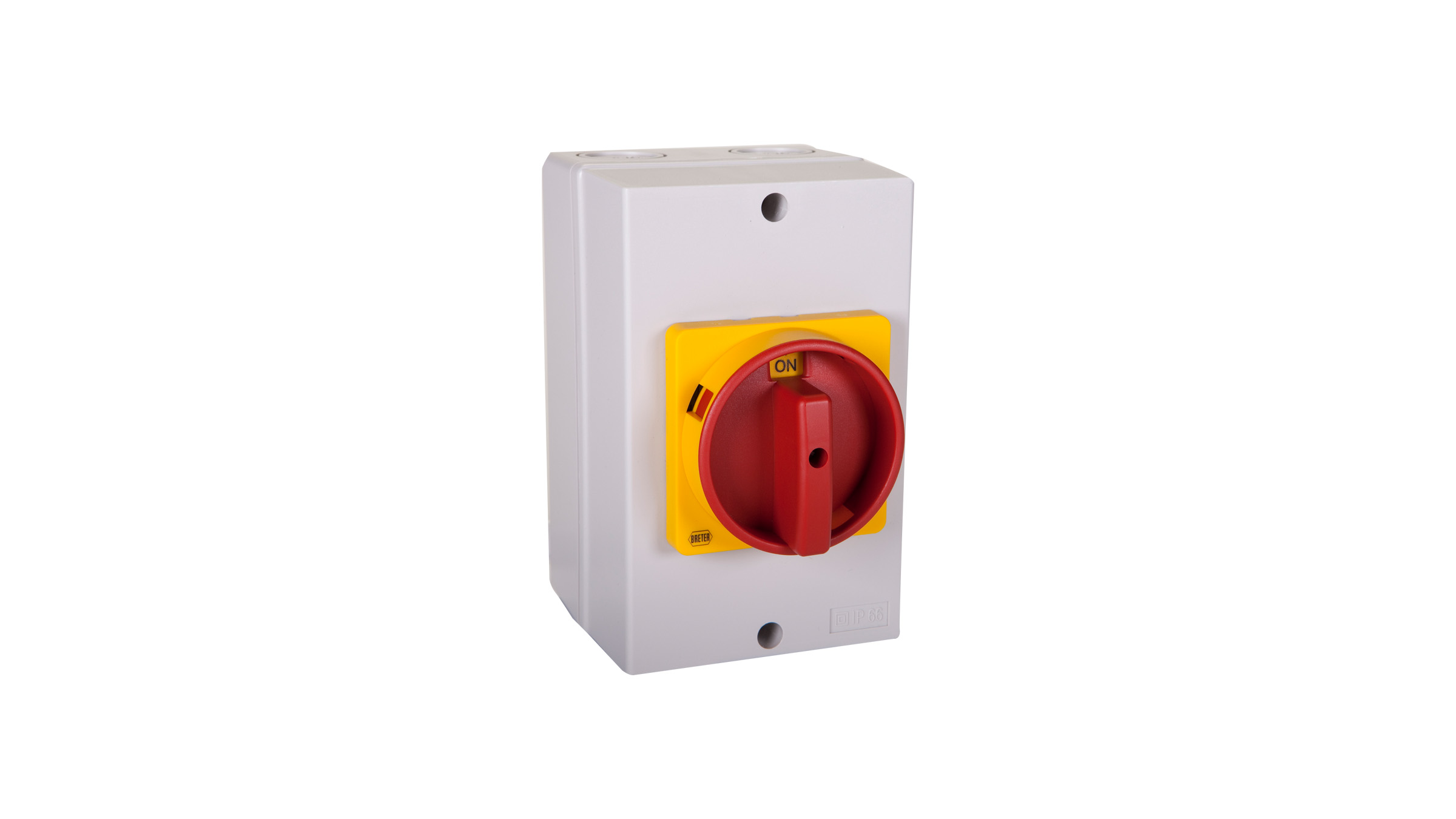

- Pre-assembled, enclosed options
- 16A to 100A
- 3-Pole and 6-Pole
- 90 Deg. Throw or Changeover
- IP20
- UL508, Part III
- CSA C22.2 No. 14)
- CE Mark
- IEC 947-1, 947-3, as well as IEC 207
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
Documentation
Resource | Resource Type | Publication Number |
---|---|---|
L7 Disconnects Overview | Flyer | F-L7MotorDisc |
Manual Switching Devices | White Paper | tech-lmsd |
