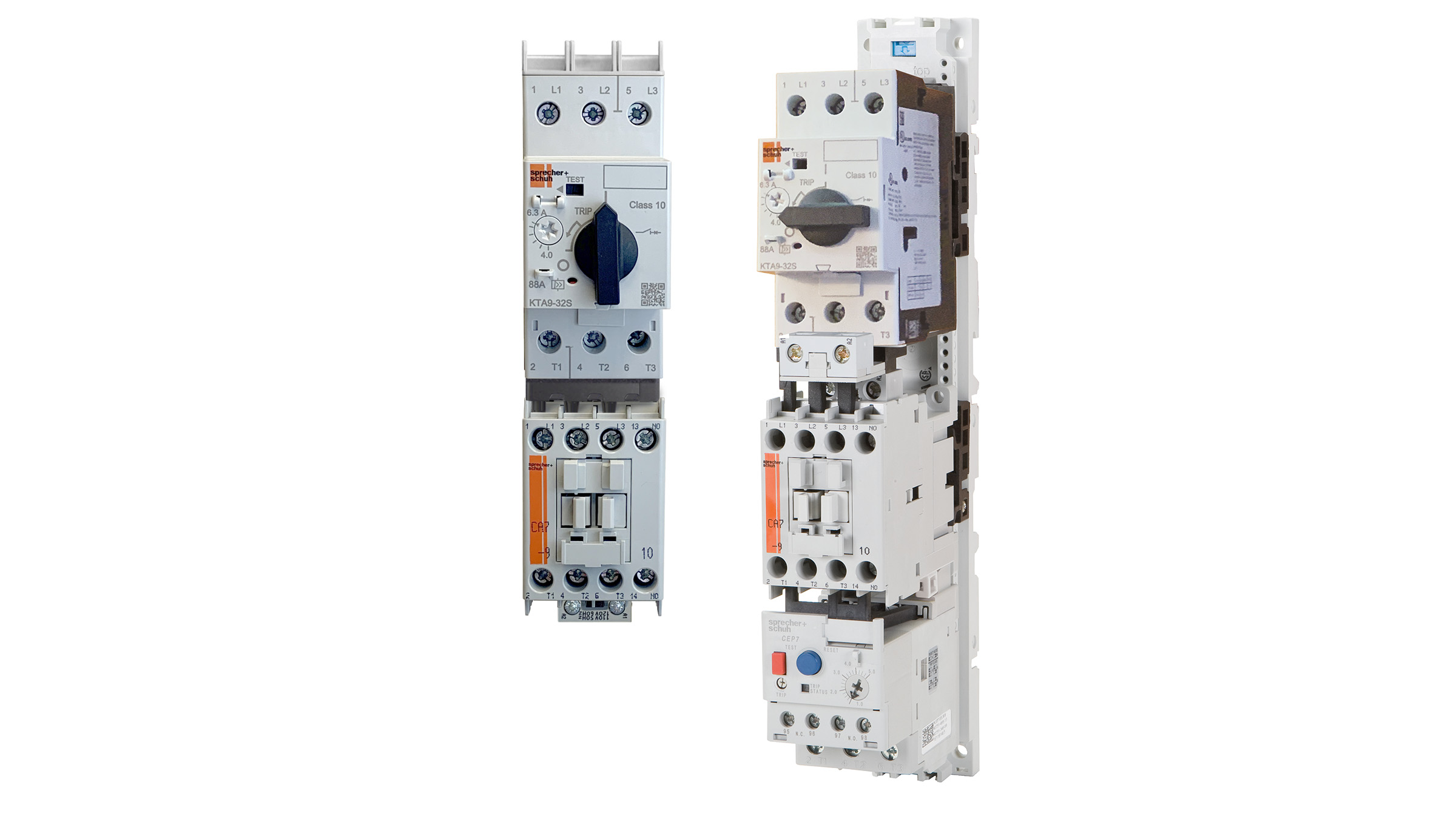

Sprecher + Schuh’s Ecombo starters are the compact alternative to larger and higher priced combination starters. Both models consist of a KT9 Motor Circuit Controller (cULus listed as a Type E, self-protected combination starter), assembled with a CA7 or CA8 contactor, which provides remote operation (Type E/F). Whether used as a standalone starter or in multi-motor starter applications, Ecombo starters save significant panel space and dollars over conventional combination starter alternatives.

The Ecombo starter line covers motors to 40A (KT9) / 45A (KT7), while providing current limiting short circuit protection up to 65kA. Class 10 thermal overload protection is also assured with a very accurate current adjustment setting which is factory calibrated to the smallest and largest current the unit can handle. A “differential tripping” mechanism also provides accelerated tripping under single phase conditions. Ecombo starters may be selected as Type 2 Coordinated per IEC 60947-4-1, or UL Construction Type E or F.
