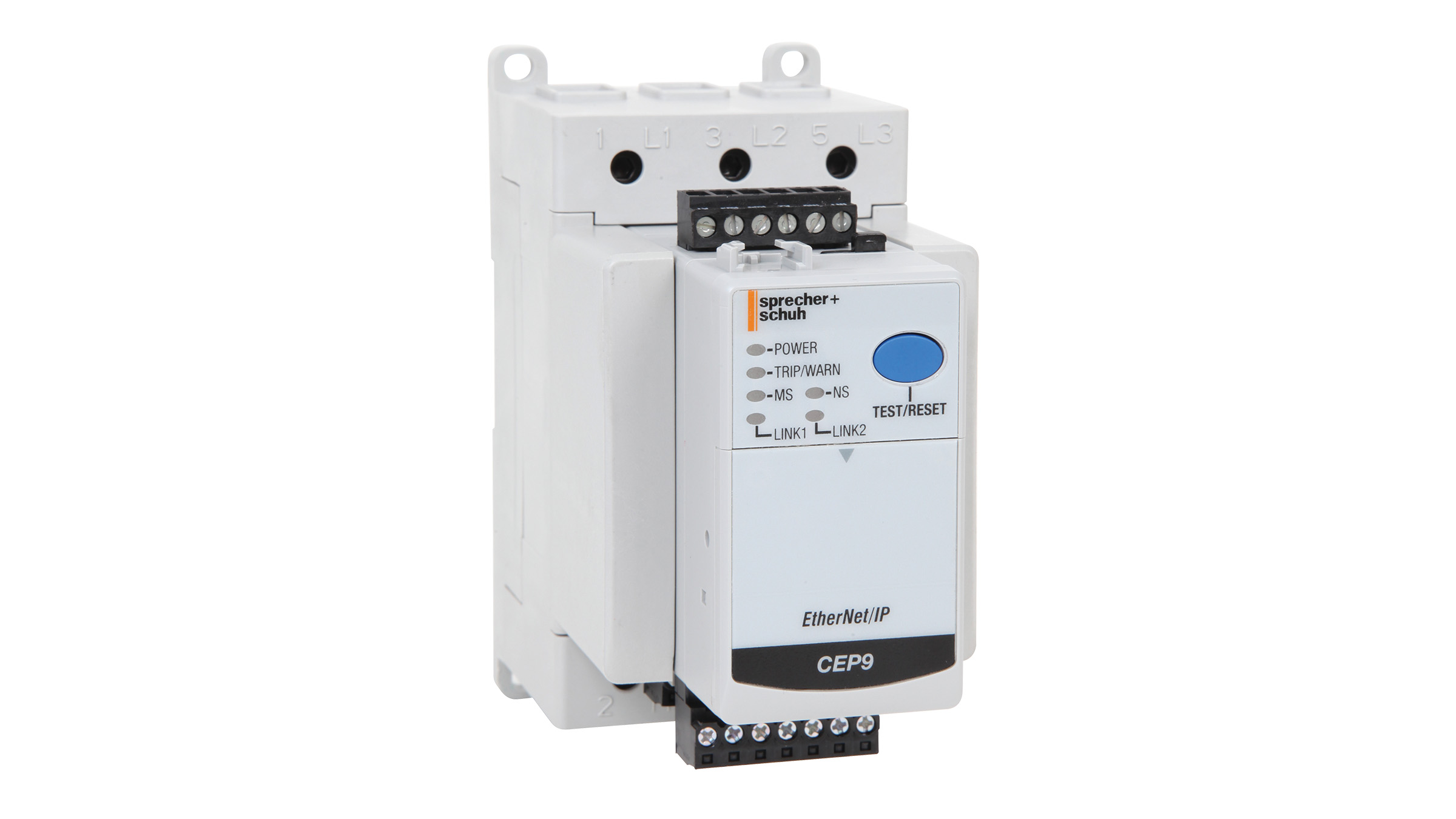

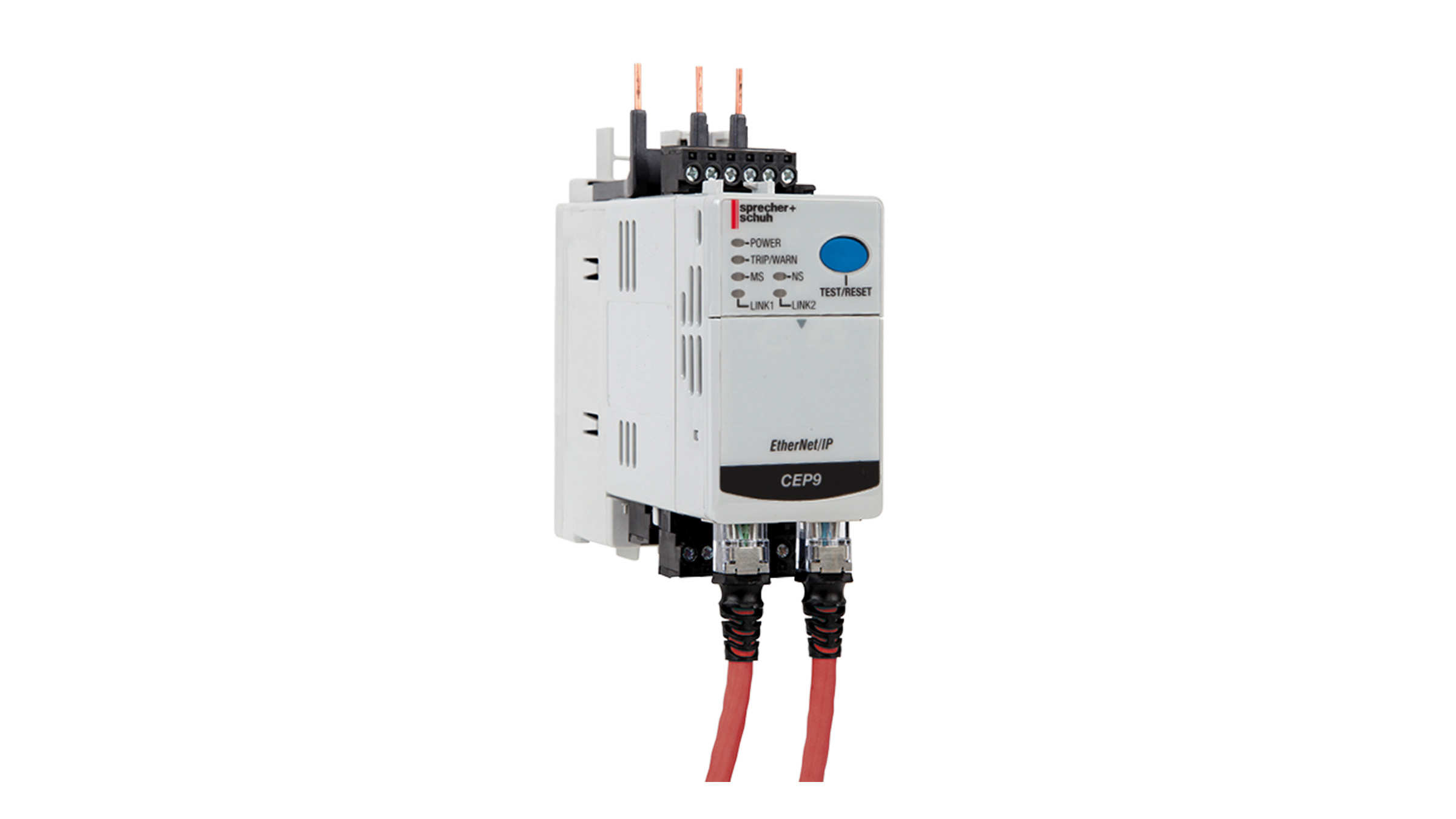

CEP9 Electronic Overload Relays
Advanced Solid State Overload Protection (direct or separate mounting)
Popular Resources / Quicklinks
Overview
The CEP9 Electronic Overload Relay is the next generation electronic overload from Sprecher + Schuh. Its modular design, communication options, diagnostic information, simplified wiring and integration into Logix make this the ideal overload for motor control applications in an automation system. The CEP9 Overload Relay provides flexibility, reduces engineering time and maximizes uptime for important motor starter applications.
Overload Protection
Product Comparison
Specifications
Intelligent Motor Protection
- Easy automation system integration
- Network Connectivity
- Native I/O
- DeviceLogix™ Technology Enabled
- Pre-programmed Operating Modes
Diagnostic Information
- Monitor motor performance
- Voltage, Current and Energy
- Trip / Warning Histories
- % Thermal Capacity Utilization
- Time to Trip
- CEP9 modular designTime to Reset
- Operational Hours
- Number of Starts
- Snapshot Log
Modular Design
Wide Current Range
Multiple Sensing Capabilities
Expansion I/O
Operator Interface
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
Documentation
| Resource | Resource Type | Publication Number |
|---|---|---|
| CEP9 Overview | Flyer | F-CEP9 |
| Choosing the Right Overload Relay | Brochure | F-MotorProtection |
| Premium Efficiency Motor Protection | White Paper | TECH-High Efficiency Motors |
