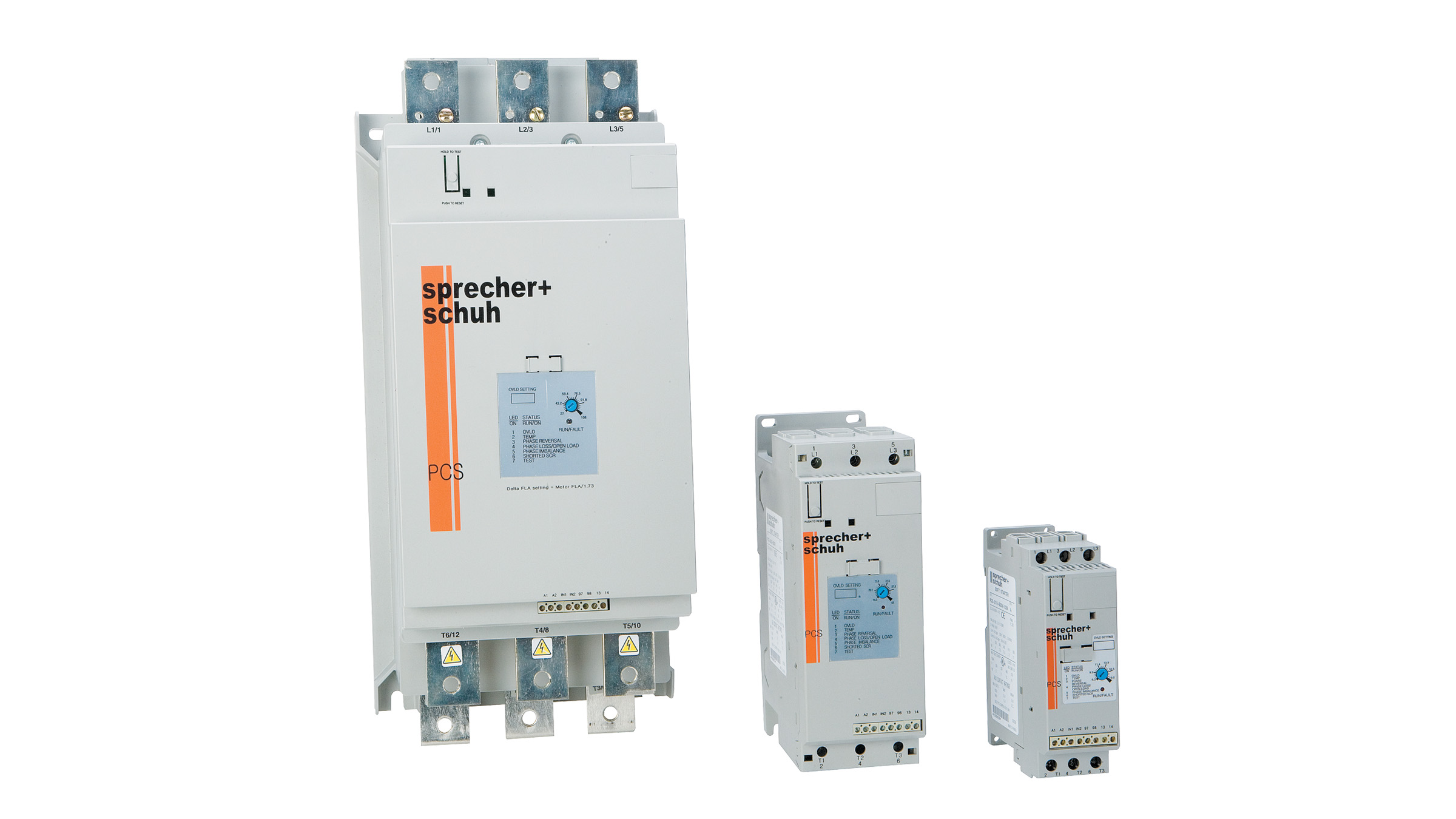

Series PCS Softstarters
Economical solid-state controller with rich features designed for 3-phase motors up to 400 HP
Popular Resources / Quicklinks
Overview
The PCS Softstarter Controller offers rich features at an economical price. This softstarter is specifically designed to start 3-phase motors (up to 400HP@460V / 500HP@575V), but is very compact, easy to use and DIN-rail mountable for models up to 85A. Four standard starting modes are available with the PCS Controller:
- Soft Start
- Soft Start with Selectable Kick-Start
- Current Limit Starting
- Soft Start with Soft Stop
Softstarters
Product Comparison
Specifications
- Five frame sizes
- 1.5 HP to 400 HP @ 480V
- Built-in overload and SCR bypass
- Digital rotary switch
- LED fault indication
- Line or Delta compatible
- Bypass contactor
- Over temperature protection
- Phase reversal and phase imbalance protection
- Push-to-test function
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
Documentation
| Resource | Resource Type | Publication Number |
|---|---|---|
| PCS Softstarter Overview | Flyer | F-PCS |
| PCS Troubleshooting Guide | Guide | 41053-190-01 (2) |
| Softstarter Bypass Technology | White Paper | WP-SoftstarterBypassTech |
