D7 Devices

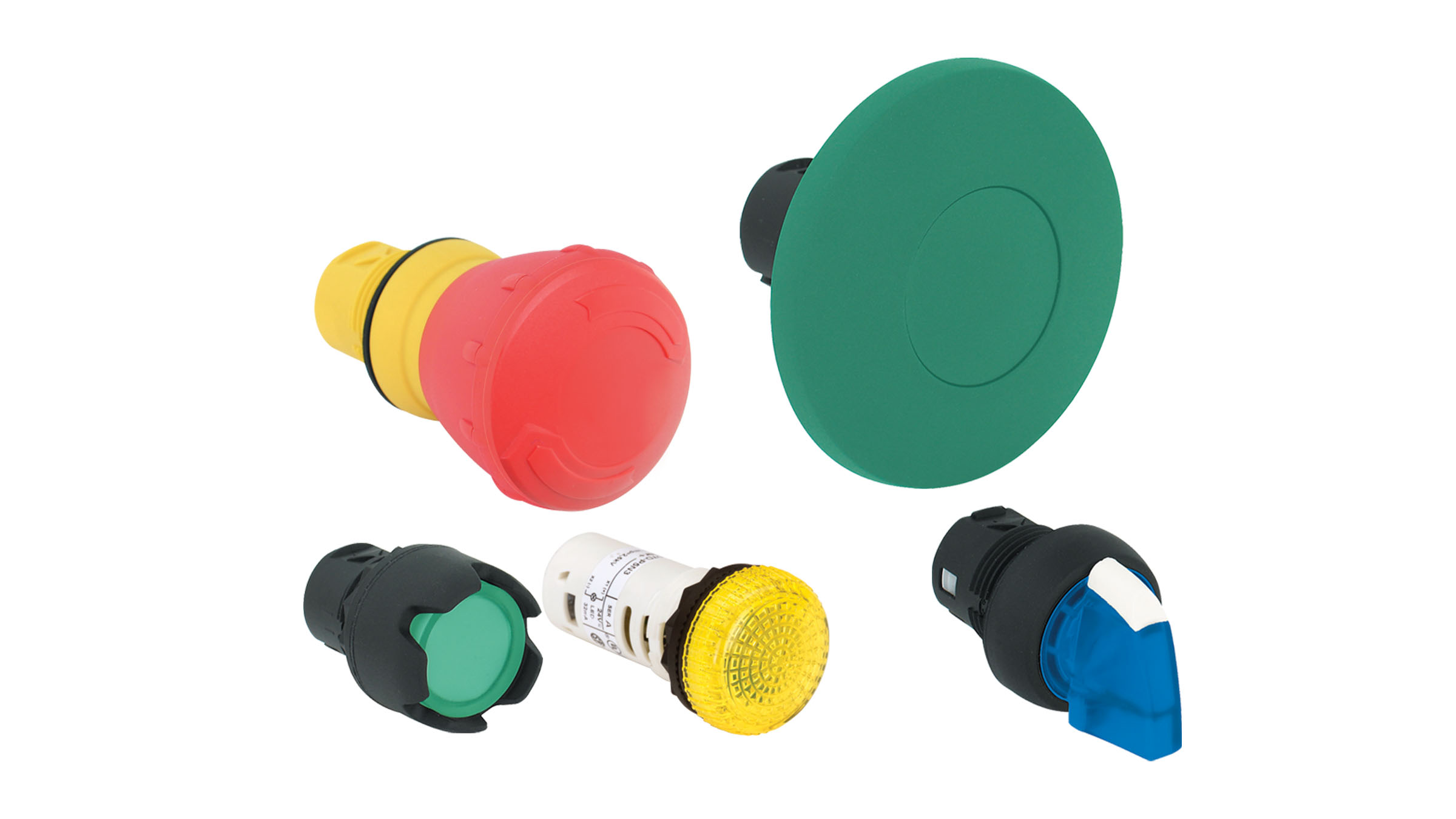

The Economical Solution For High Performance Control, Signaling And Switching Applications
Popular Resources / Quicklinks
Overview
Sprecher + Schuh's rugged D7 pilot devices offer maximum flexibility and a wide choice for all applications. This 22mm line is aesthetically appealing and modularly designed to make assembly and interchangeability easy. The D7 operators are available in two different body styles to meet every application need. Both operators exhibit a low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments.
Pilot Devices
Product Comparison
Specifications
Push buttons
- Flush & Extended
- Illuminated & non-illuminated
- Mushroom 40mm & 60mm
- Musroom Illuminated in 40mm
- Guardian in illuminated & non-illuminated
- 3-position Push-Pull operators in illuminated & non-illuminated
- 2-position & 3-position Multifunction in illuminated & non-illuminated
Selector Switches
- Illuminated & non-illuminated
- 2-position, 3-position, 4-position
- Key-Operated
Pilot Lights
Selector/Jog Switches
Potentiometers
Pushbutton Stations
Enclosures
Accessories
- Mechanical life: most operators ten million operations, contact blocks five million operations
- Electrical life: 500,000 cycles at 3A to ten million at 0.1A
- Self-cleaning contacts
- IP 66
- Type 4/13 and plastic operators Type 4X
- UL 46E, NEMA A600 and Q600 listed.
- 10 Amp continuous current rating
- Special Contact Blocks & Power Modules
- H-Bridge & Gold Plated Contacts
- Molded Inscription Caps/Diffusers
- Custom Printed Caps/Diffusers
- Touch-Safe —IP 20 protection.
- Long Lasting Integral LED Assemblies
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
Documentation
| Resource | Resource Type | Publication Number |
|---|---|---|
| D7 Pilot Devices Overview Flyer | Brochure | PRODPROF-PILOTDEVICES |
| D7 Pilot Devices Quick Guide | Guide | Mat-D7Pilot |
| IEC vs NEMA type Push Buttons | White Paper | TECH-IECvsNEMA |
