D7D Monolithic Devices

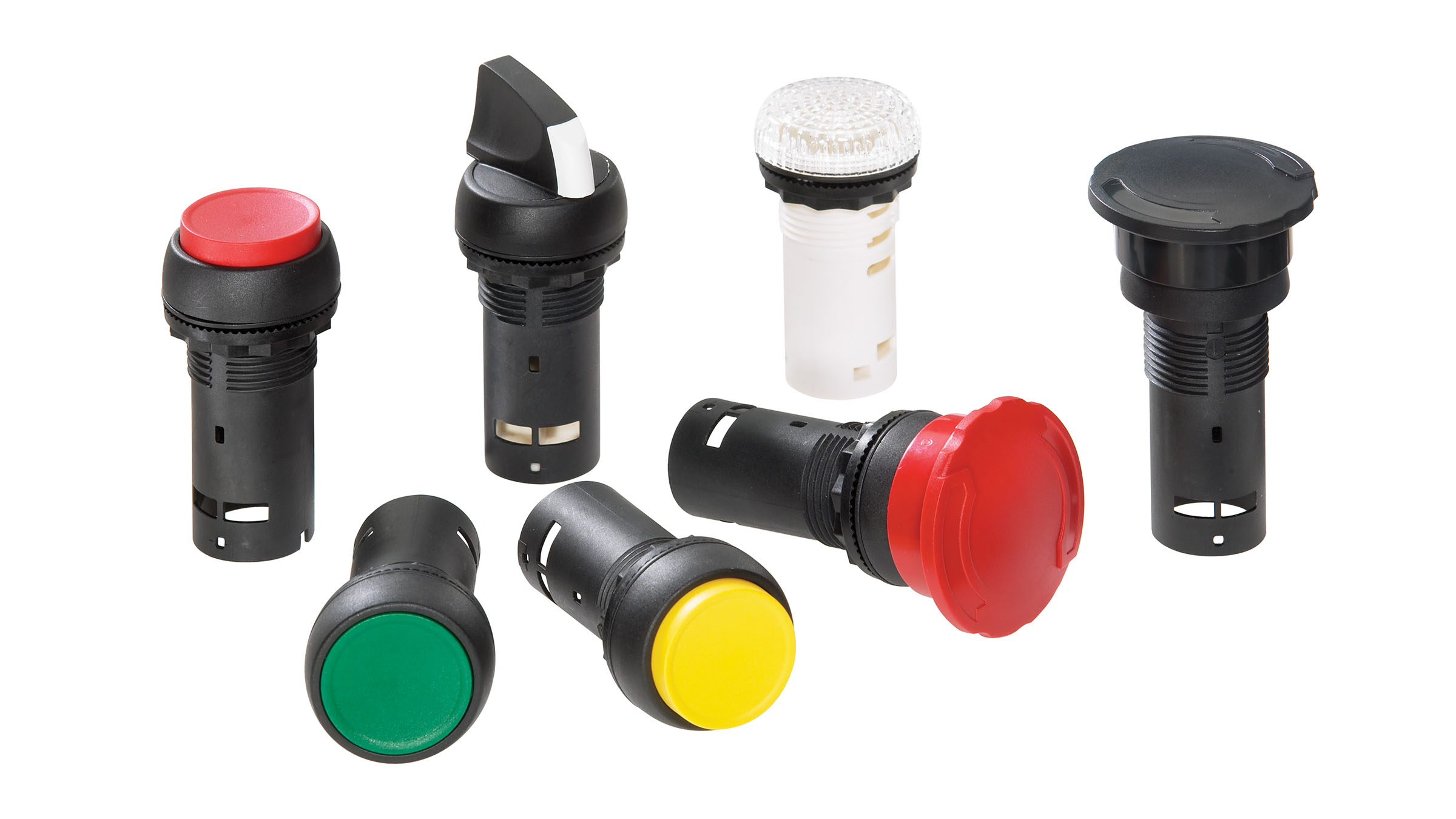

An economical choice for many industrial uses, these operators include push buttons, e-stops, switches, and pilot lights with either light indicators or incandescent illumination options.
Popular Resources / Quicklinks
Overview
The D7D Monolithic series is an economical range of 22.5 mm control and signaling pilot devices. Combining most of the features of the standard D7 series, the monolithic series is a range of complete push buttons, pilot lights, selector switches and emergency stop devices that have been assembled in the most used specifications. Constructed from high quality industrial grade thermoplastic, the monolithic series features a unique one piece body that incorporates both front and rear of panel components into one element that can be ordered from one convenient single catalog number. With the security of environmental sealing and one piece rear fixing the D7D Monolithic range is the ideal choice for applications where easy and efficient ordering and installation is a priority
Pilot Devices
Product Comparison
Specifications
- One part number ordering
- Complete one piece panel mounting
- Lenses, press plates and handles pre-fitted
- Single rear fixing nut
- Tamper-proof press plates and rotary handles
- IP 20 finger protection on terminals
- Positive detent on selector switch to prevent hang up between positions
- Optically enhanced lenses on pilot lights
- Integrated LED lamp technology
- UL Type 4/4X/13, IP66 Sealing
- Chemical resistant industrial grade thermoplastic body
- Corrosion and UV resistant
- Modern low profile appearance
- Ergonomic press plates and handles
- Concave press plates on pushbuttons
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
Documentation
| Resource | Resource Type | Publication Number |
|---|---|---|
| D7D Monolithic Pilot Devices Overview | Flyer | F-D7DMONOLITHIC |
| IEC vs NEMA type Push Buttons | White Paper | TECH-IECvsNEMA |
