Enclosed Contactors

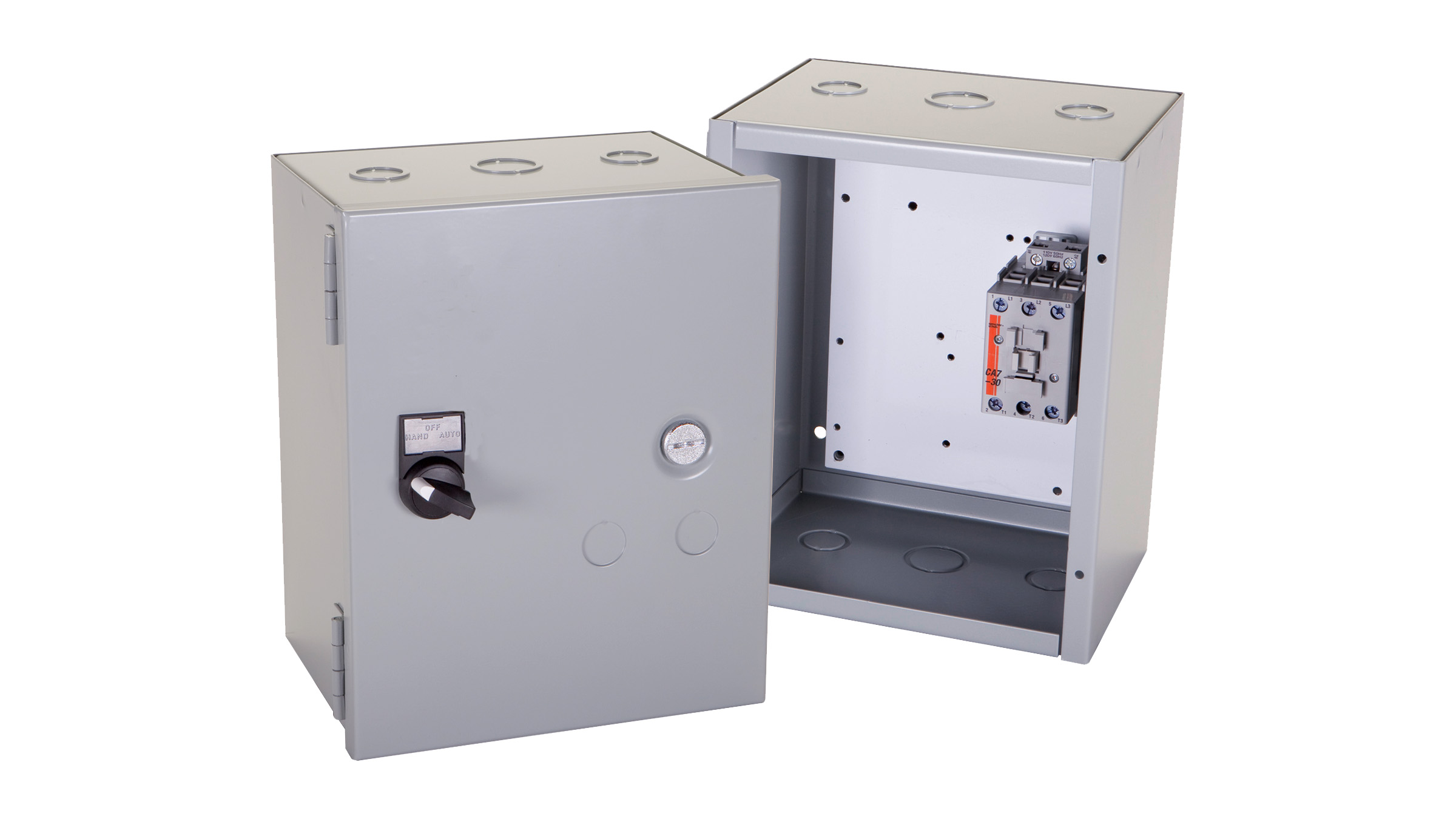

Contactors housed in a variety of enclosures
Popular Resources / Quicklinks
Overview
Sprecher + Schuh's broad line of IEC and NEMA contactors can be purchased pre-installed in a variety of standard enclosures. es. Cataloged enclosures include:
- Type 1 (M1) General Purpose
- Type 12 (M12) Industrial Dusttight
- Type 3R (M3) Raintight (outdoor)
- Type 4 (M4) Watertight
- Type 4X (F4) Watertight, Corrosion Resistant Non-Metallic
Starters & Enclosed Products
Product Comparison
Indoor
- Type 1 (IP23), protection against incidental contact with enclosed equipment, Falling dirt, Rust
- Type 12 (IP55/65), all of the above plus protection against circulating dust, lint, fibers and flyings, Falling liquids and light splashing
Outdoor
- Type 3R, protection against incidental contact with enclosed equipment, Falling dirt, Rust
- Type 3 (IP64), All of the above plus protection against Circulating dust, lint, fibers and flyings, Windblown dust, Falling liquids and light splashing, Rain (limited water allowed inside), Rain (no water allowed inside), Snow and sleet
Indoor or Outdoor
- Type 4 (IP66), all of the Type 3 protections plus hosedown and splashing water
- Type 4X (IP66), same as Type 4 plus protection against occasional temporary or prolonged submersion, and corrosive agents
Specifications
Enclosed Contactors available for
- Series CA7/CB7/CAU7
- Series CA9/CAU7
- Series CAN7/CAUN7
- Series CAL7/CAVL7
Looking for more?
Find selection guidance, technical information, wiring diagrams, and dimension drawings in the E-Catalog.
