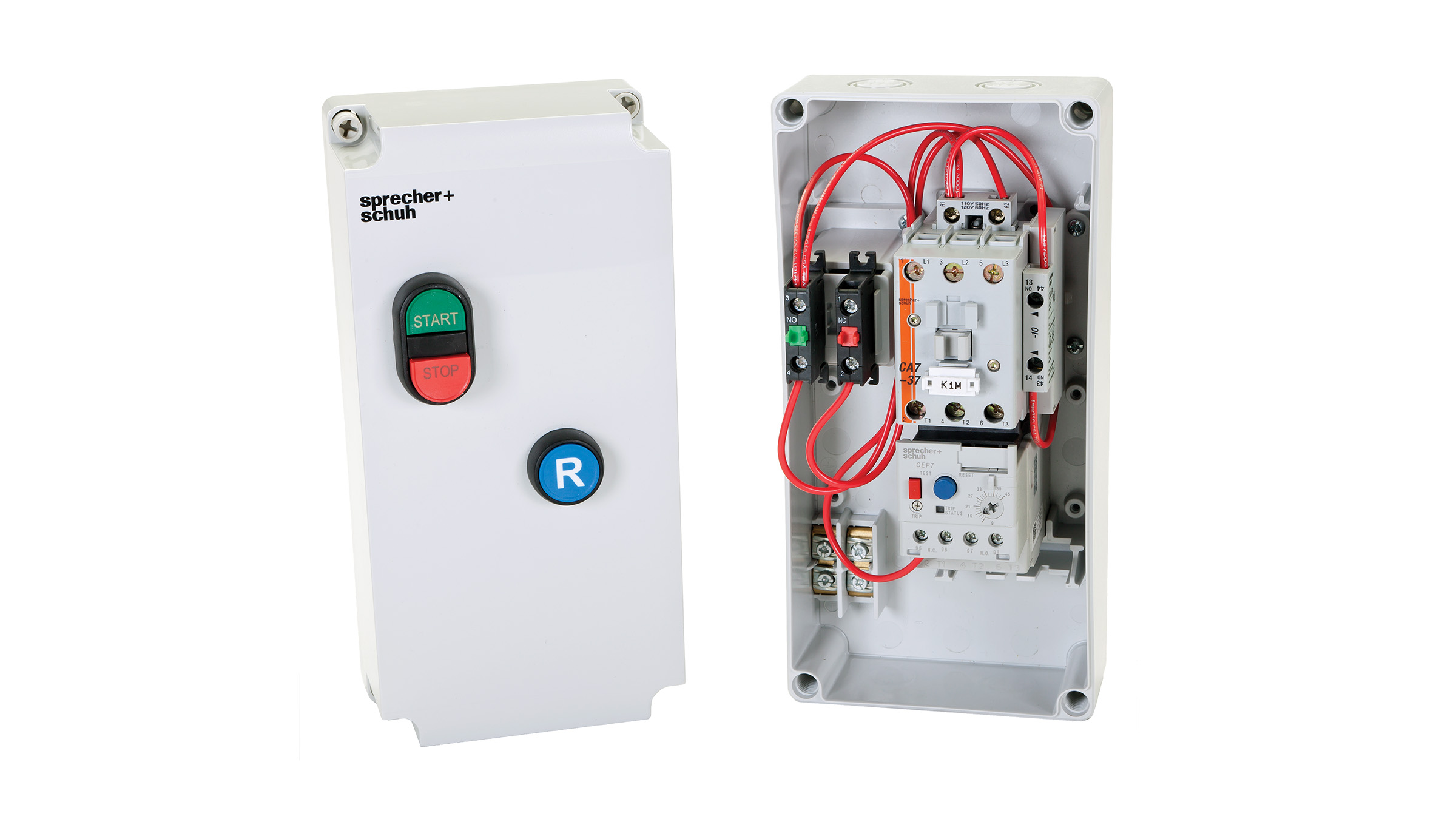

Basic Start-Stop KWIKstarters include a raised Stop and flush Start button for easy control. A blue Reset only model is also available. Either three phase or single phase, this basic model is available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA sizes 00 or 0.

Multi-function KWIKstarters

Larger horsepower KWIKstarters include three phase and single phase with a variety of multi-function operations (or pilot light) and a Reset. These KWIKstarters are available in 30...43 amps, in UL ratings up to 30 HP @ 460V AC or Electronic DC, or NEMA 1 and 2 sizes.

HOA Options

HVAC/R KWIKstarters were specifically designed for the HVAC/R industry, in three phase and single phase with a Hand-Off-Auto selector switch, Pilot light, and Reset controls. These HVAC/R KWIKstarters are available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA 00 and 0 sizes.

Reversing Options

Reversing KWIKstarters in three phase and single phase offer a variety of multi-function operations (or pilot light) and a Reset. These KWIKstarters are available in 9...23 amps, in UL ratings up to 15 HP @ 460V AC or Electronic DC, or NEMA 00 and 0 sizes.

CX7 KWIKstarters are a three phase motor controller combining CA7 and KTA7 for a Type E/F Combination Controller. Factory installed controls include On-Off handle and pilot device options, selector switch, multi-function pushbutton or pilot lights. Available in Standard or High Interrupting Capacity, AC or Electronic DC, in models from 1/2 to 15 HP (@ 480V).

Type E/F Reversing

CXU7 KWIKstarters are three phase motor controllers combining CA7 and KTA7 for a Type E/F Reversing Combination Controller. Factory installed On-Off handle and pilot device options, including selector switch, multi-function pushbutton or pilot lights. Available in Standard or High Interrupting Capacity, AC or Electronic DC, in models from 1/2 to 15 HP (@ 480V).
